Seabed Caustics: Unveiling the Enigmatic Light Patterns

Have you ever witnessed the mesmerizing dance of light patterns on the seabed? These captivating phenomena, known as seabed caustics, continue to astonish and intrigue both scientists and observers alike. In this article, we will delve into the intricacies of seabed caustics, exploring their formation, behavior, and the mathematical principles that govern their existence.

Unveiling the Nature of Seabed Caustics

Seabed caustics are characterized by the presence of bright lines that are consistently accompanied by domains of light between them. These lines flicker and roam over the seabed, creating an ever-changing yet strangely familiar pattern. The transparent sea, with a depth ranging from 30 to 50 centimeters, serves as the canvas for this captivating optical display.

The Role of Refraction in Shaping Seabed Caustics

The phenomenon of seabed caustics is intricately linked to the refraction of sunlight by the curved surface of the water. However, contrary to popular belief, this refraction does not "focus" the sun's rays. Instead, it creates a two-dimensional slice through a three-dimensional cluster of constantly moving and changing light sheets known as caustic sheets.

Understanding Caustic Sheets: Boundaries of Optical Regions

Caustic sheets serve as boundaries between different optical regions of space. On one side of these boundaries, the refracted rays of sunlight do not intersect with one another. However, on the other side, the rays do cross paths. The edges of these regions where rays cluster give rise to the remarkably bright and impeccably sharp caustic boundaries observed in seabed caustics.

Unraveling the Mathematics Behind Seabed Caustics

To comprehend the intersection and behavior of caustics, we delve into a relatively recent branch of pure mathematics known as catastrophe theory. This field deals with the behavior of critical points on a map, with the name "catastrophe" arising from the fact that these points represent states of stability. Engineers, for instance, utilize catastrophe theory to analyze the stability of bridges, distinguishing between desired structural stability and catastrophic collapse.

From Bridges to Light Rays: Catastrophe Theory in Action

The same mathematical principles that govern the stability of structures also apply to the behavior of light rays when they interact with refracting or reflecting surfaces. In essence, the path of light rays from a surface to the human eye can be defined as a map. Caustics, in this context, mark discontinuities in space, representing optical catastrophes. Interestingly, catastrophe theory predicts that caustics are stable and occur naturally.

The Inherent Stability and Specificity of Seabed Caustics

While the ever-changing nature of seabed caustics may seem chaotic, these intricate patterns possess a surprising level of order and stability. Catastrophe theory reveals that there are only seven stable elementary forms of caustics. This inherent limitation gives rise to their remarkable order and highly specific ways in which they intersect and interact.

Nature's Focusing Power: The Stability of Caustics

Intriguingly, caustics embody nature's ability to focus light with unparalleled precision and stability. Unlike human-made camera lenses, which can easily lose focus due to minor perturbations or errors, caustics remain sharp and unwavering. Even the slightest change in distance or position does not blur their distinct patterns. Caustics exemplify the stability that human focusing struggles to achieve.

Unveiling the Beauty of Ever-Changing Yet Familiar Patterns

Seabed caustics continue to captivate us with their ever-changing yet strangely familiar patterns. Despite their shifting nature, these mesmerizing light displays retain their sharpness, order, and allure. While a rippling stream or swimming pool effortlessly generates these caustics without any special preconditions, the creation of a camera lens requires meticulous effort. The stability and beauty of seabed caustics remind us of the intricate wonders that nature effortlessly unveils.

In conclusion, seabed caustics offer a glimpse into the fascinating interplay between light, water, and mathematics. These enchanting optical phenomena demonstrate the inherent order and stability that arise from seemingly chaotic processes. As we continue to explore the mysteries of atmospheric optics, the dance of seabed caustics serves as a reminder of the astonishing beauty and complexity that surround us.

Seabed Caustic Patterns

Pictured by M. Rasid Tugral. Bright lines, nearly always paired with bright domains of light between them and always pin-sharp. They flicker and roam over the seabed - ever changing yet somehow familiarly structured. The transparent sea was 30-50cm deep. Image ©M. Rasid Tugral

The curved water surface refracts - but does not 'focus' - the sun's rays

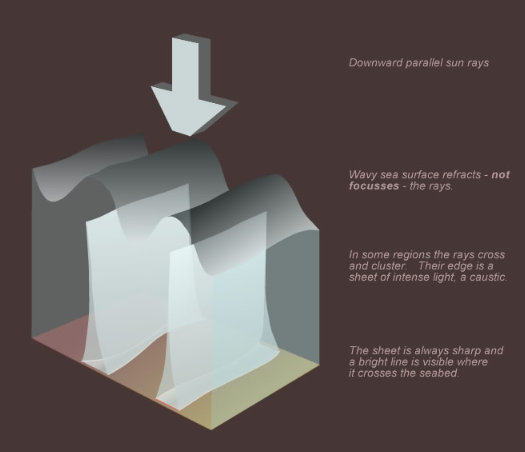

The shifting seabed light patterns are a two dimensional slice through a 3D cluster of ever moving and changing light sheets - caustic sheets.

The caustic sheets are boundaries between different optical regions of space. On one side the sun's rays refracted by the water's wavy surface do not cross each other. On the other side the rays do cross.

Rays cluster at the edges of the ray crossing regions producing the very bright and always sharp caustic boundaries.

Seabed lines are often paired with a bright area between them. The brighter area is a ray crossing region. Typically, a convex wave region refracts light to produce two caustic sheets joined at top at a cusp and then slowly separating with depth.

The understanding of the intersection and behaviour of caustics falls into the domain of a comparatively recent branch of pure mathematics, ‘catastrophe theory'.

Catastrophe theory deals with the behaviour of critical points on a map. The name arises because these critical points are ones of stability. Transition from one stable point to another can, in the practical world, have dire consequences. For example, engineers apply catastrophe theory to the stability of bridges. One stable point on their map is the desired bridge structure. Twisted girders in the river are another stable point. The discontinuity in behaviour representing bridge collapse is the catastrophe.

The same mathematics describes how rays from a refracting (or reflecting) surface behave because rays of light from a surface to the eye define a map. Caustics mark discontinuities in space, optical catastrophes. The theory predicts that they are stable and occur naturally. A rippling stream or swimming pool generates their sharp and ordered forms without special preconditions � they just happen. Compare that to the effort needed to create a camera lens. The lens focus is unstable in that any minor perturbation � a change in distance to the focusing screen or an error in a lens element position � destroys the focus into a blur. Caustics - Nature�s focussing - stay sharp. They are stable � human focussing is not.

A deep result from catastrophe theory is that caustics are not infinite in their variety. There are only seven stable elementary forms. These severe restrictions on form give rise to their remarkable order and to a high specificity in the way they cross and interact. Although ever changing, their shifting patterns remain sharp, familiar and ordered.
